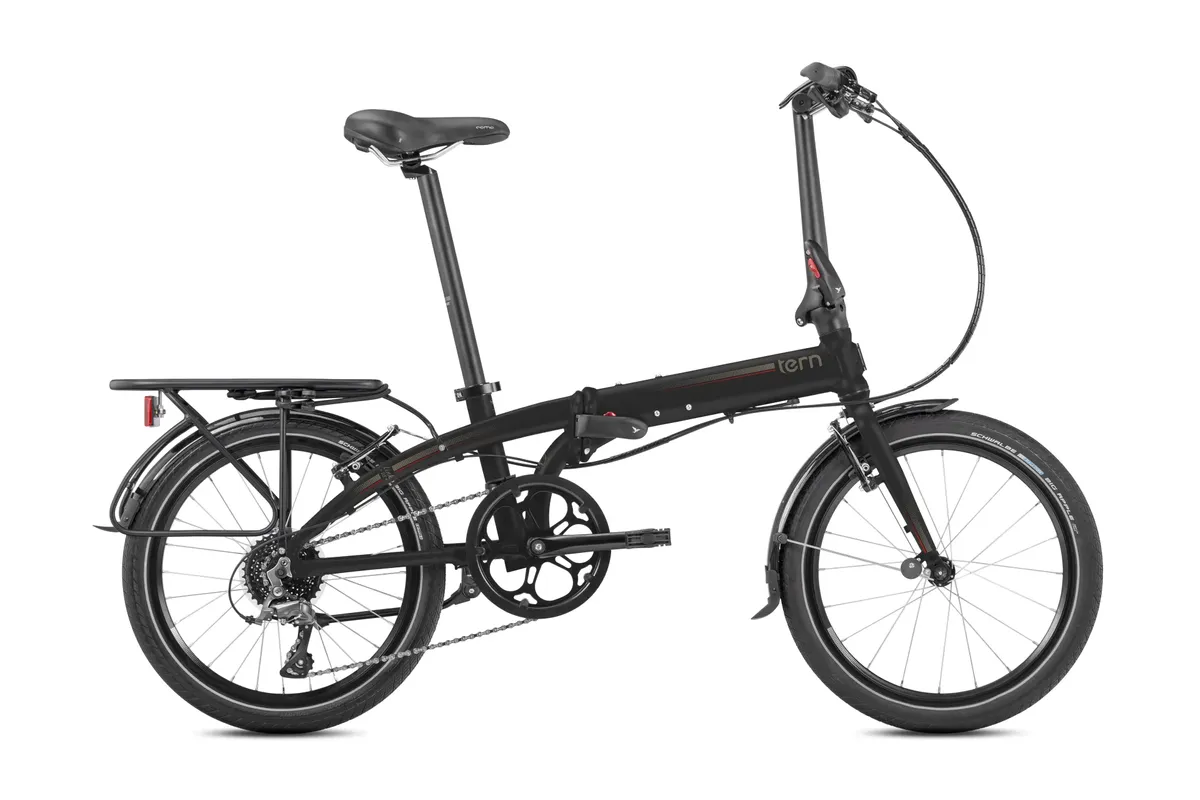

Mobile phones, umbrellas, point and shoot cameras—the natural arc of evolution moves in a direction of increasing portability—the bicycle is no different. The Link D8 is your everyday travel companion, whether your trip is exclusively on two wheels or in combination with buses, trains, or automobiles.
- 8-speed drivetrain for all the range you need in the city
- Andros™ handlebar stem for tool-free riding position adjustments on the fly
- Shimano Claris rear derailleur for quick and responsive gear shifting
- Schwalbe Big Apple tires with Kevlar puncture protection
- Folds in under 10 seconds to fit under a desk
- Magnetix™ 2.0 lock the bike in place when folded
- Rear rack, fenders and integrated lighting available as options, in select countries
SPECIFICATIONS
GENERAL INFO
SPEEDS |
1 x 8 |
WEIGHT |
12.1 kg |
GEAR INCHES |
33" - 87" (2.60 - 6.94 m) |
FOLDING SIZE |
38 × 79 × 72 cm |
FOLDING TIME |
10 sec |
FRAME SIZES |
One size |
DISTANCE - SEATPOST TO HANDLEBAR |
62 - 69 cm |
DISTANCE - SADDLE TO PEDAL |
70 - 96 cm |
SUGGESTED RIDER HEIGHT |
142 - 190 cm |
MAX GROSS VEHICLE WEIGHT |
120 kg |
MAX RIDER WEIGHT |
105 kg |
FRAME
FRAME |
Tern Link, aluminum, OCL joint, 3 patented technologies |
FORK |
Integrated, hi-tensile steel |
COCKPIT
HANDLEPOST |
Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 350 mm |
STEM |
Tern Andros (G2), adjustable, forged construction, patented technology |
HEADSET |
Flux, cartridge bearings, Physis integrated |
HANDLEBAR |
Flat bar, 6061-Al, Andros butted |
GRIPS/BAR TAPE |
Velo ergonomic, lock-on |
SADDLE |
BioLogic Como DLX |
SEATPOST |
SuperOversize, 6061-AL, micro-adjust clamp |
SEATPOST CLAMP |
SuperOversize, 6061-AL |
BRAKES
FRONT BRAKE |
V, aluminum, linear spring |
REAR BRAKE |
V, aluminum, linear spring |
BRAKE LEVERS |
V, aluminum bracket/lever |
BRAKE CABLE & HOUSING |
Anti-compression housing, slick cables |
WHEELS
FRONT HUB |
Mini, aluminum, QR Opt: Panasonic dynamo |
REAR HUB |
Formula, 8 spd cassette |
SPOKES & NIPPLES |
Sapim Leader, stainless steel |
RIMS |
Doublewall aluminum |
TIRES |
Schwalbe Big Apple, 50-406, puncture protection, Reflex |
TRANSMISSION
SHIFTER(S) |
Shimano, 1 x 8 spd, trigger |
REAR DERAILLEUR |
Shimano Claris |
CRANKSET |
Forged 6061 aluminum crank arms, hand-polished |
CASSETTE/FREEWHEEL |
11-32T, 8 spd |
BOTTOM BRACKET |
Cartridge, sealed bearings |
CHAIN |
8 spd |
PEDALS |
Folding, alloy body |
SHIFTER CABLE & HOUSING |
SP |
BELLS & WHISTLES
BELL |
Aluminum |
KICKSTAND |
Deluxe center mount |
CLIP SYSTEM |
Magnetix 2.0 |
LUGGAGE SOCKET |
Yes |
FRONT LIGHT |
Opt: Tern Valo 2, integrated, 41 lux/150 lumens |
REAR LIGHT |
Opt: Deluxe LED |
FENDERS |
Opt: RP Chromeplastic, stainless hardware |
RACK(S) |
Opt: Tern Loader Rack |
*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
