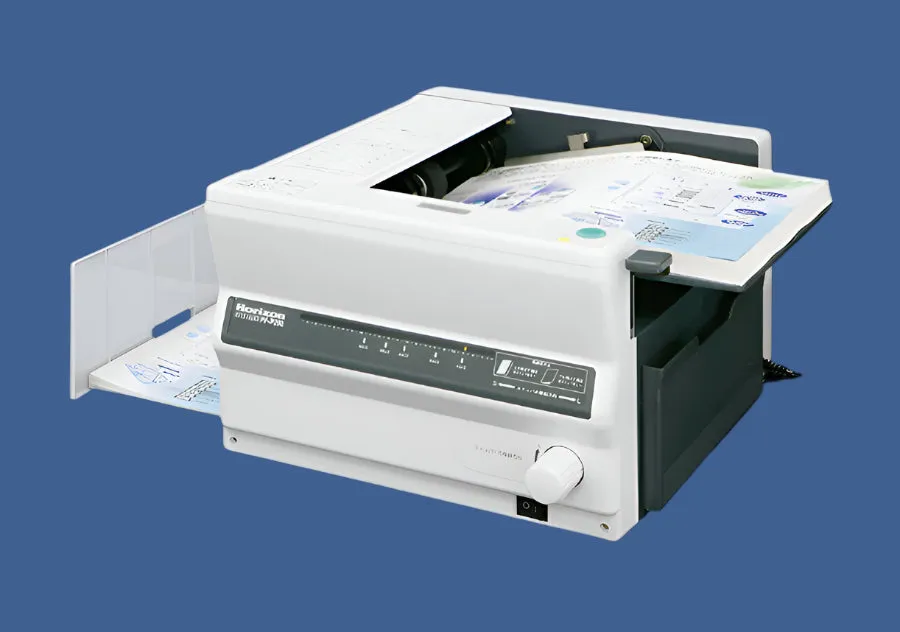

The Horizon PF-P280 is a compact and efficient table-top automatic folder designed for easy operation and high-performance document folding. This user-friendly machine is ideal for offices and light commercial environments, providing accurate, consistent folds with minimal setup.
Key Features
🔷 Compact Table-Top Design – Space-saving unit that fits into any office or small-scale production environment.
🔷 High-Speed Folding – Processes up to 140 sheets per minute (B4 single fold) for quick and efficient document handling.
🔷 Versatile Folding Options – Supports standard 4-page folding, with two-step folding (cross folding via second pass) for 6-page, letter, gate, and 8-page cross folds.
🔷 Easy Maintenance – Tool-free replacement of feed rollers, double sheet feed stop pads, and folding rollers for minimal downtime.

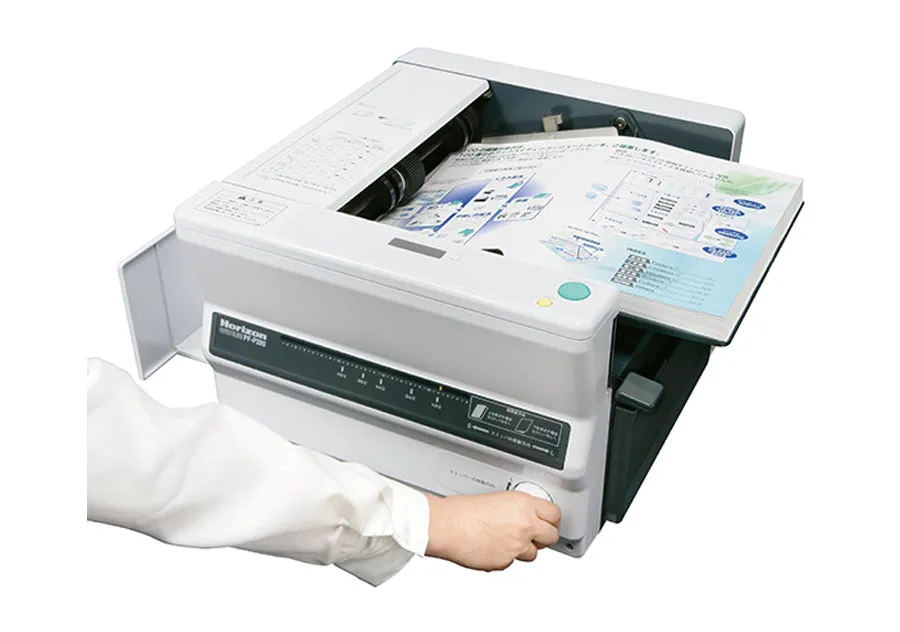

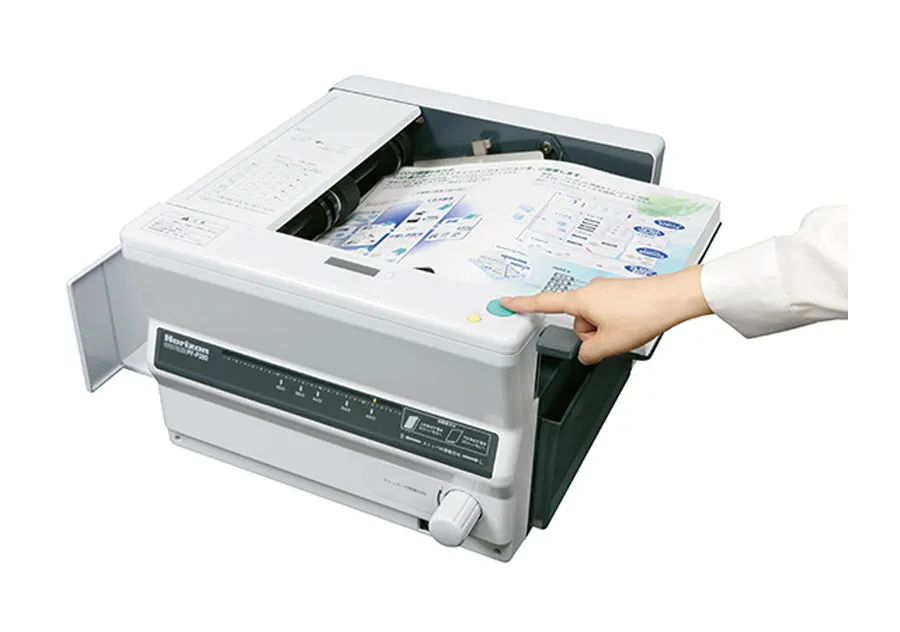

🔷 User-Friendly Operation – Simple controls allow quick setup and smooth operation for users of all experience levels.
🔷 Energy Efficient – Low power consumption for cost-effective and environmentally friendly performance.
Specifications
| Specification | Details |
|---|---|
| Installation Type | Table-top |
| Sheet Feeding System | Friction system |
| Sheet Size (Max) | 302 x 432 mm (11.8” x 17.0”) |
| Sheet Size (Min) | 65 x 90 mm (2.6” x 3.6”) |
| Supported Paper Sizes | A3, B4, A4, B5 |
| Sheet Weight Range | 47 to 105 gsm (up to 128 gsm for A4 to B5 single folds) |
| Feeder Stack Height | 21 mm (0.82”) |
| Fold Patterns | Single Fold |
| Production Speed | 140 sheets per minute (B4 single fold) |
| Voltage/Frequency | Single Phase 115-120V or 220-240V, 50/60 Hz |
| Rated Current | 0.5 A (115-120V) / 0.4 A (220-240V) |
| Dimensions (Operating) | 771 x 485 x 316 mm (30.4” x 19.1” x 12.5”) |
| Dimensions (Stored) | 463 x 485 x 316 mm (18.3” x 19.1” x 12.5”) |
| Machine Weight | 25 kg (55.2 lbs) |
Applications
📄 Office Use – Folds invoices, letters, brochures, and flyers for streamlined document handling.
📢 Direct Mail Processing – Prepares newsletters, promotional materials, and bulk mail for efficient distribution.
🏢 Small-Scale Print Production – Ensures consistent, professional folds for light commercial printing needs.
Benefits
✔ Fast Processing – Increases productivity with up to 140 sheets per minute.
✔ Reliable Performance – Friction feed system ensures accurate and consistent folding.
✔ Minimal Maintenance – Easily replace feed rollers and other components without tools.
✔ Compact and Portable – Ideal for offices and small-scale print environments.
✔ Energy Efficient – Operates with low power consumption for cost savings.
